商品の詳細:
|
| 材料: | アルミニウム合金 2017 | 合金の種類: | 2017 (AlCu4MgSi) |
|---|---|---|---|
| 気性: | T4 | 形: | 丸棒 |
| 直径: | 10mm～200mm | 長さ: | 1,000mm～4,000mm |
| 密度: | 2.79 g/cm3 | 抗張力: | 390～440MPa |
| 降伏強さ: | ≥ 250 MPa | 伸長: | ≥ 12% |
| 硬度: | 105～120HB | 熱伝導率: | 165W/m・K |
| 被削性: | 70% (真鍮に対して) | 応用: | 金型製造、CNCツーリング、精密治具 |
| ハイライト: | 2017-T4 aluminum bar for mold manufacturing,precision aluminum bar high-speed CNC,raw material aluminum alloy bar |
||

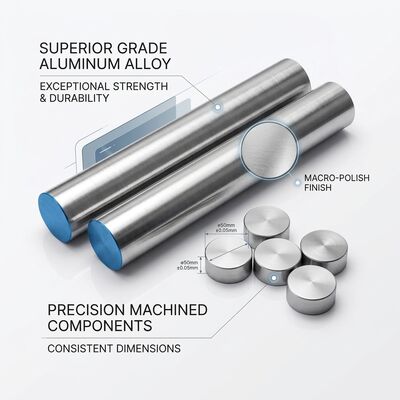

The 2017-T4 precision aluminum bar is an aluminum-copper alloy specifically engineered for mold manufacturing, precision tooling, and high-speed CNC machining applications where superior machinability and dimensional stability are paramount. This alloy, also designated as AlCu4MgSi under European standards, offers the finest chip formation characteristics among heat-treatable aluminum alloys, producing short, well-defined chips that clear effectively during automated
