7075-T651 Aerospace Grade High Strength Round Aluminum Bar for Aircraft Structural Parts

認証
中国 ShanXi TaiGang Stainless Steel Co.,Ltd 認証
中国 ShanXi TaiGang Stainless Steel Co.,Ltd 認証
オンラインです

7075-T651 Aerospace Grade High Strength Round Aluminum Bar for Aircraft Structural Parts

7075-T651 Aerospace Grade High Strength Round Aluminum Bar for Aircraft Structural Parts
7075-T651 Aerospace Grade High Strength Round Aluminum Bar for Aircraft Structural Parts

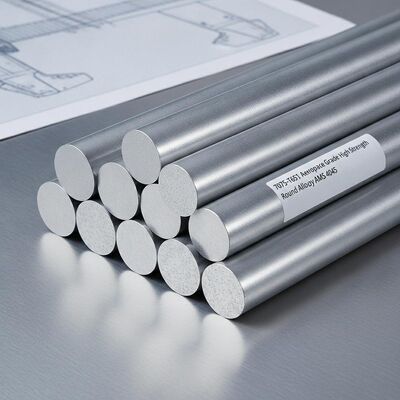

大画像 :  7075-T651 Aerospace Grade High Strength Round Aluminum Bar for Aircraft Structural Parts

商品の詳細:
起源の場所: 江蘇省、中国
ブランド名: TGPX
証明: ISO 9001:2015, AMS 4045, ASTM B221
モデル番号: 7075-T651-RB
お支払配送条件:
最小注文数量: 500キログラム
価格: USD 4.50-7.80 / Kilogram
パッケージの詳細: 防錆油を塗布し、防水クラフト紙で包み、燻蒸防止合板ケースに梱包
受渡し時間: 在庫に5営業日、生産に15〜25日
支払条件: T/T、L/C、PayPal、ウエスタンユニオン
供給の能力: 月あたり50,000キログラム

7075-T651 Aerospace Grade High Strength Round Aluminum Bar for Aircraft Structural Parts

説明
合金: 7075 気性: T651
直径範囲: 6mm - 300mm 長さ: 1000mm -6000mm
抗張力: ≧572MPa 降伏強さ: ≧503MPa
伸長: 11%以上 硬度: ≧150HB
標準: AMS 4045、ASTM B221、GB/T 3191 表面: ミル仕上げ / ポリッシュ / アルマイト
応用: 航空機構造部品、着陸装置、翼桁
ハイライト:

7075-T651 Zinc Alloy Bar

,

AMS 4045 Aerospace Standard

,

Heat Treated High Strength

7075-T651 Aerospace Grade High Strength Round Aluminum Bar Zinc Alloy AMS 4045 For Aircraft Structural Parts
7075-T651 Aerospace Grade Round Aluminum Bar

The 7075-T651 round aluminum bar is a high-strength zinc-alloyed product designed for demanding aerospace structural applications. With zinc as the primary alloying element, 7075 offers one of the highest strength-to-weight ratios among all aluminum alloys. Heat treated to T651 temper (solution heat treated, stress relieved by stretching, and artificially aged), this bar delivers exceptional mechanical properties suitable for critical load-bearing components.

Key Features
  • Zinc-based 7xxx series alloy with tensile strength ≥ 572 MPa
  • T651 temper for optimized stress relief and dimensional stability
  • Excellent fatigue resistance for cyclic loading applications
  • Good machinability in the heat-treated condition
  • Conforms to AMS 4045, ASTM B221, and GB/T 3191 standards
Typical Applications
  • Aircraft structural components and wing spars
  • Landing gear parts and fuselage frames
  • High-stress aerospace machined parts
  • Defense and equipment components
Packaging & Delivery

All bars are coated with anti-rust oil and wrapped in waterproof kraft paper, then packed in fumigation-free plywood cases. Standard delivery within 5 working days for stock sizes, 15-25 days for custom production orders.
